Models

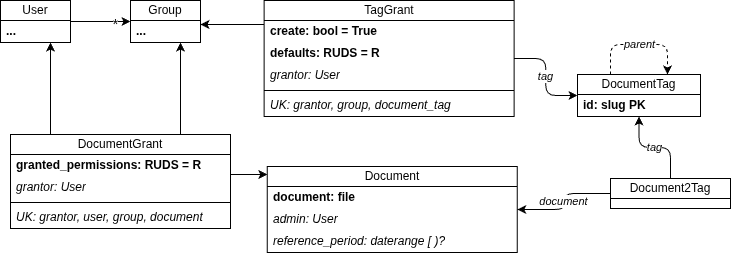

Data-Model diagram: models.png

This section describes the models used by django-simple-dms.

DocumentTag

A DocumentTag is a logical namespace for Documents.

A tag is defined in a hierarchical taxonomy. Each tag is identified by a unique slug prefixed by a dot-separated list of its ancestors tags and a dot. Example: alfa.beta.charlie where charlie is the tag and beta and alfa are its ancestors tags in ascending order.

A document can have 0..n tags. The first tag in the list identifies the document primary "nature" (i.e., the structural folder in a strictly hierarchical classification).

Fields

  • title (CharField, unique): A dot-separated slug. Validated with a regex pattern that accepts letters, numbers, underscores, and hyphens separated by dots.

Validation

  • Tags are automatically converted to lowercase
  • Leading and trailing dots are stripped
  • Must match the pattern: ^([-a-zA-Z0-9_]+(\.)?)+$

Example

from django_simple_dms.models import DocumentTag

# Create hierarchical tags
invoices = DocumentTag.objects.create(title='invoices')
invoices_2024 = DocumentTag.objects.create(title='invoices.2024')
invoices_2024_q1 = DocumentTag.objects.create(title='invoices.2024.q1')

DocumentGrant

Represents the permissions granted to a user or a group for a specific document.

Permissions are: * R: Read * U: Update * D: Delete * S: Share (a user can share the same permissions they own directly or via a group to other users or groups)

The document admin implicitly owns all RUDS permissions.

Fields

  • user (ForeignKey, nullable): The user receiving the grant. Either user or group must be set, but not both.
  • group (ForeignKey, nullable): The group receiving the grant. Either user or group must be set, but not both.
  • granted_permissions (ArrayField): An array of characters representing the granted permissions. Defaults to ['R'] if empty.
  • grantor (ForeignKey, nullable): The user who granted the permissions.
  • document (ForeignKey): The document for which permissions are granted.

Unique Constraint

A unique constraint exists on ['grantor', 'user', 'group', 'document'] with nulls_distinct=False (Django 5.0+/PostgreSQL 15+), meaning NULL values are treated as equal for uniqueness checks.

Validation

  • Exactly one of user or group must be set
  • Permissions are automatically converted to uppercase
  • Only valid permissions are R, U, D, S
  • For Django < 5.0, uniqueness is enforced programmatically in the save() method

String Representation

The string format shows whether it's a user grant (U:) or group grant (D:), followed by permissions and document:

U:john:RU:document.pdf
D:editors:RUDS:document.pdf

When granted by a user (not the system), permissions are shown in lowercase.

TagGrant

Represents the permissions granted to a group for creating documents with a specific tag and the default permissions those documents will receive.

Fields

  • group (ForeignKey, nullable): The group receiving the grant.
  • create (BooleanField): Whether the group can create documents with this tag. Defaults to True.
  • defaults (ArrayField, nullable): Default permissions (R, U, D, S) automatically applied to documents created with this tag. Empty array means no automatic grants.
  • grantor (ForeignKey, nullable): The user who created this grant.
  • tag (ForeignKey): The tag this grant applies to.

Unique Constraint

A unique constraint exists on ['grantor', 'group', 'tag'] with nulls_distinct=False (Django 5.0+/PostgreSQL 15+), meaning NULL values are treated as equal for uniqueness checks.

Validation

  • Default permissions are automatically converted to uppercase
  • Only valid permissions are R, U, D, S
  • For Django < 5.0, uniqueness is enforced programmatically in the save() method

Custom Manager: TagGrantQuerySet

The TagGrant model has a custom manager with the following method:

  • check_create(grantor, tags): Checks if a user can create documents with the given tags.
    • Returns CreationCheckSuccess with applicable grants if allowed
    • Returns CreationCheckFail with failing tags if not allowed
    • Superusers always pass the check
    • Checks that the user's groups have create=True grants for all specified tags

String Representation

Format: tag-group-Cdefaults where C appears if create=True and defaults are the permission letters.

Example

from django_simple_dms.models import TagGrant, DocumentTag
from django.contrib.auth.models import Group

# Allow 'editors' group to create invoices with default read/update permissions
grant = TagGrant.objects.create(
    tag=DocumentTag.objects.get(title='invoices'),
    group=Group.objects.get(name='editors'),
    create=True,
    defaults=['R', 'U'],
    grantor=admin_user
)

Document

The Document model stores uploaded documents with permission management.

Fields

  • document (FileField): The uploaded file. Default upload path: documents/%Y/%m/%d
  • upload_date (DateTimeField): Automatically set when the document is uploaded.
  • admin (ForeignKey, nullable): The user who can administrate this document. Implicitly has all RUDS permissions.
  • tags (ManyToManyField): Tags associated with the document, linked through Document2Tag.
  • reference_period (DateRangeField, nullable): Optional date range for time-based document organization.

DocumentQuerySet

The Document model has a custom DocumentQuerySet with the following methods:

  • accessible_by(user): Returns all documents accessible by the given user (as admin or through grants).
  • can_grant_contains(user, cruds): Returns all documents where the user has the specified permissions (list of permission characters).
  • can_read(user): Returns all documents the user can read (has 'R' permission).
  • can_update(user): Returns all documents the user can update (has 'U' permission).
  • can_delete(user): Returns all documents the user can delete (has 'D' permission).
  • can_share(user): Returns all documents the user can share (has 'S' permission).

Class Methods

add(document, actor=None, admin=None, tags=None)

Creates a new document and saves it to the database with permission checks.

Parameters:

  • document (AnyFileLike): The document to upload. Accepts:
    • str: File path as string
    • Path: Pathlib Path object
    • io.BufferedReader: Open file handle
    • UploadedFile: Django uploaded file
  • actor (User, optional): The user creating the document. Used for permission checks. Superusers bypass checks.
  • admin (User, optional): The user who will administrate this document record.
  • tags (list[str | DocumentTag], optional): List of tags (as strings or DocumentTag objects) to associate with the document.

Returns: The created Document instance.

Raises: * ForbiddenException: If the actor doesn't have permission to create documents with the specified tags.

Behavior:

  1. Validates that the actor has create=True TagGrants for all specified tags
  2. Creates the document
  3. Automatically creates DocumentGrants based on TagGrant defaults
  4. Associates tags with the document through Document2Tag

Example:

from django_simple_dms.models import Document
from pathlib import Path

# From file path
doc = Document.add(
    document='/path/to/invoice.pdf',
    actor=request.user,
    admin=request.user,
    tags=['invoices.2024.q1']
)

# From Path object
doc = Document.add(
    document=Path('/path/to/report.pdf'),
    actor=request.user,
    tags=['reports', 'annual']
)

# From uploaded file
doc = Document.add(
    document=request.FILES['document'],
    actor=request.user,
    admin=request.user
)

Document2Tag

An intermediate model representing the many-to-many relationship between Document and DocumentTag.

Fields

  • tag (ForeignKey): The DocumentTag.
  • document (ForeignKey): The Document.

Unique Constraint

A unique constraint exists on ['document', 'tag'] to prevent duplicate tag assignments (Django 5.0+). For earlier versions, this is enforced in the save() method.

String Representation

Format: tag.title:document.name

Example: invoices.2024:invoice_001.pdf
